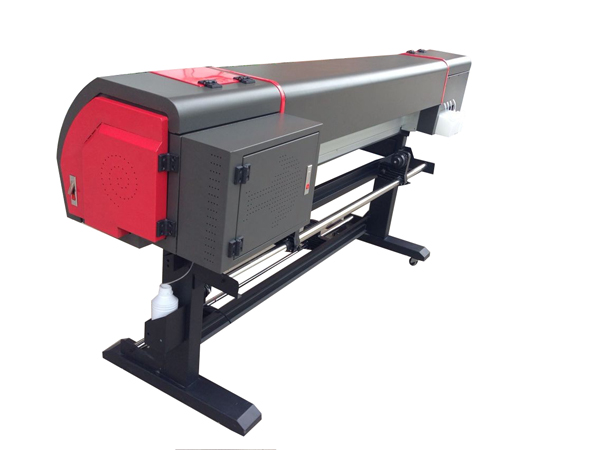

1600F fabric printer

machine introduction:

1. Adopt EPSON DX5/Dx7 printhead, which with 180 nozzles / roll *8 lines *1. With high output quality that up to 1440DPI precision.

2.Staggered arrangement printing can imporve the productivity. The printing speed can be 15sqm/h in 4 pass under the staggered arrangement printing mode.

3.Adopt New Variable Droplet Control Technology, which achieve the three grayscale to make the printing more delicate and accurate. It can output the perfect printing with VSD technology even in high speed or low resolution.

4.With separately front, middle and back heating system, automatic Media take-up system.

5. The height of printhead can be adjustable according to the thickness of media from 2mm to 5mm, to ensure the good spary quality.

6. Adopt Three Intelligent Eclosion Print Function, which can eliminate the broken picture and make the printing more perfect and delicate.

7. With Automatic Ink Maintenance station. The automatic self-designed absorbing device with simple operation is convenient for mantaining, And the automatic up / down sucking ink function can reduce to wast of ink.

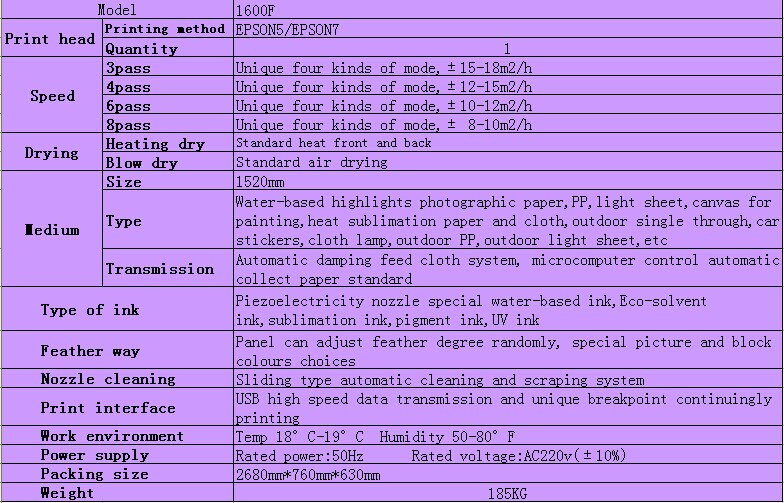

Technical parameters
